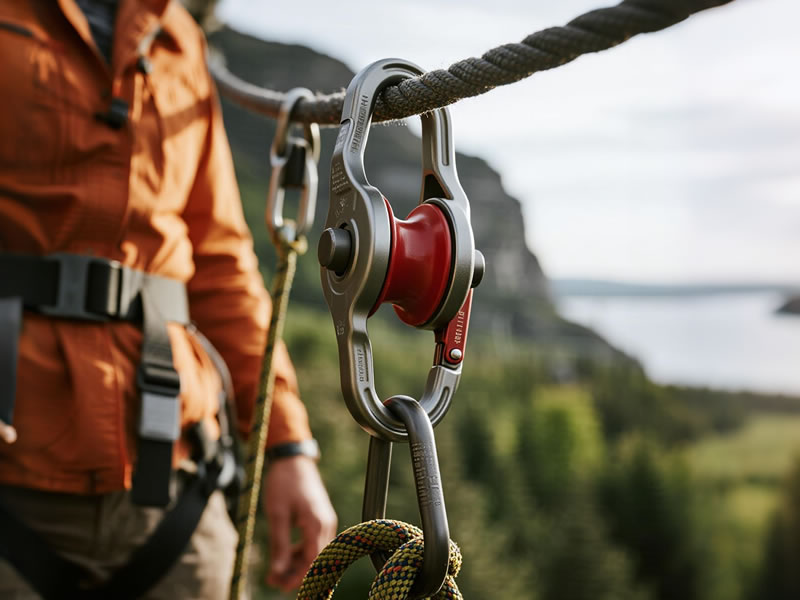

Small carabiner with pulley
When every newton of force counts in a rescue, haul, or rigging scenario, a small carabiner with an integrated pulley transforms from a simple connector into a precision mechanical advantage generator. These hybrid devices merge the attachment versatility of a carabiner with the friction-reducing efficiency of a pulley—packing aerospace-grade engineering into a palm-sized tool.
The Physics Behind Micro-Pulley Dominance
Traditional redirects create massive friction losses:
- Static Rope Bends: 40-60% efficiency due to pin-on-rope friction 2
- Carabiner-Only Redirects: Limited to 50% efficiency with high rope wear
Integrated pulley carabiners solve this with:
▫️ **Sealed Ball Bearings**: 92-95% efficiency (vs. bushing pulleys' 70%) :cite[3]:cite[5]
▫️ **Optimized Sheave Geometry**: Matched groove radius prevents rope deformation
▫️ **Compact Frame Design**: Aluminum/Ti frames withstand 15-30kN loads despite <80mm size :cite[9] Critical Specifications for Professional-Grade Performance
| Feature | Consumer Grade | Professional Standard | Failure Risk |
|---|---|---|---|
| Bearing Type | Bushings | Sealed ball bearings | Grit-induced seizure |
| Sheave Material | Nylon composite | CNC-machined 6061-T6 aluminum | Groove deformation >5kN |
| Side Plates | Pressed steel | Double-bent 7075 aluminum | Spreader failure at 8kN |
| Certification | None | NFPA 1983 "T" Technical Use | Unverified load claims |
Life-Saving Applications Beyond Basic Hauling
- Wilderness Rescue (Z-Drag Systems)Implementation: 3:1 mechanical advantage with 75% less friction than carabiner-only systemsCritical Feature: Oversized top hole accommodates 2 rescue carabiners for system anchoring 5
- Arborist Work PositioningAdvantage: 360° rotating carabiner allows reorientation mid-ascent without unclipping 7
- Alpine Climbing (Crevasse Extraction)Technical Edge: -40°C cryo-treated bearings prevent freezing (vs. bushing pulleys seizing below -10°C) 3
- Tactical Operations (Stealth Insertion)Benefit: Silent operation with <2dB engagement noise (needle bearings emit >8dB) 2
The Deadly Sins of "Bargain" Pulley Carabiners
⚠️ Unsealed Bushings
Failure Mode: Grit infiltration → 300% friction increase after 50m rope travel
⚠️ Non-Anodized Sheaves
Risk: Aluminum oxide abrasion shreds rope jackets at 12kN+ loads
⚠️ Single-Point Side Plates
Collapse Risk: Plate deformation under cross-loading (strength drops 70%)
Top 3 Technically Validated Systems
| Model | Key Innovation | Strength | Weight | Best For | |
|---|---|---|---|---|---|
| SMC Micro PMP | Prusik-minding wide base | 24kN | 86g | Ice rescue/hauling | 35 |
| Petzl PULLER CORD | Asymmetric sheave + wire capture | 18kN | 92g | Alpine fast & light | |
| DMM Revolve Carabiner | Dual-bearing rotating sheave | 22kN | 105g | Arborist redirects |
Pro Maintenance Protocol: Extend Service Life 5X
- Post-Use DecontaminationUltrasonic clean in distilled water (removes grit/salt)Dry with compressed air (<15 PSI)
- Monthly LubricationApply dry PTFE spray to bearings (never wet lube)Verify gate spring rebound <0.2 seconds
- Annual Retirement Triggers5,000 rope cyclesVisible sheave groove deformationBearing rotation resistance >0.5Nm
Why NFPA Certification Matters in Rescue
Non-certified pulleys catastrophically fail under dynamic loads:
- Certified (NFPA "T"): Withstand 5,000-lb drop tests
- Uncertified: 60% collapse at 1,500 lbs during MSU drop testing
Always demand UL/NFPAtags on life-critical systems 5.
The Verdict: Engineering Over Gimmicks
A true small carabiner-pulley hybrid isn’t a toy—it’s a force-amplifying survival tool. For SAR teams lifting patients from ravines, arborists positioning in canopies, or alpinists escaping crevasse falls, its sealed bearings and ultra-strong frame deliver reliability where standard gear fails.
Deployment Checklist:Verify NFPA/UIAA certification markingsTest bearing spin (should rotate 8+ seconds freely)Load-limit to 10% of breaking strengthRetire after 5 years regardless of use
Your mechanical advantage is only as strong as its weakest pivot point.
